Your First Pipeline

A five-minute end-to-end run: load a hyperspectral hand recording, compute a per-frame NDVI projection that highlights blood perfusion, and render the result as MP4. No Python required — the entire flow uses the restore-pipeline CLI against a pre-authored YAML.

NDVI was first developed to map chlorophyll in satellite imagery, but hemoglobin has a similar spectral footprint: it absorbs visible light strongly (~566 nm) and transmits near-infrared (~750 nm). The same normalized-difference formula doubles as a qualitative perfusion index:

\[\mathrm{NDVI}(x, y) = \frac{R_{\mathrm{NIR}}(x, y) - R_{\mathrm{Red}}(x, y)}{R_{\mathrm{NIR}}(x, y) + R_{\mathrm{Red}}(x, y)}\]

If you have not installed cuvis-ai yet, follow the Installation Guide first.

1. Get sample data

The XMR_Demo_Blood_Perfusion dataset (~11 GB) is a 568-frame hyperspectral recording of a human hand:

uv run download-data --dataset blood_perfusion

This drops .cu3s files under data/XMR_Demo_Blood_Perfusion/. Other demo datasets live in the datasets catalog.

2. Inspect the pipeline you're about to run

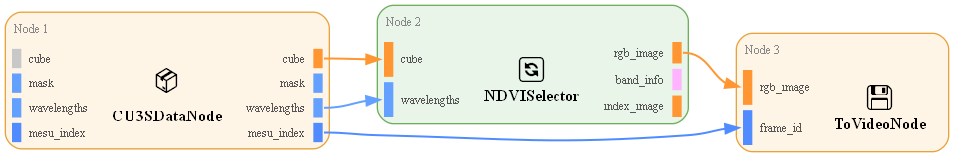

The pre-authored NDVI blood-perfusion pipeline lives at configs/pipeline/medical/blood_perfusion/ndvi.yaml. It is a three-node graph that loads each cube, computes NDVI at 750 nm vs 566 nm, and writes the colormapped frames to an MP4:

NDVI blood-perfusion pipeline

View the node graph and port wiring from the CLI:

uv run restore-pipeline --pipeline-path configs/pipeline/medical/blood_perfusion/ndvi.yaml

3. Run inference

Point the pipeline at any .cu3s file from the dataset — Auto_005.cu3s is a good first run:

uv run restore-pipeline \
  --pipeline-path configs/pipeline/medical/blood_perfusion/ndvi.yaml \
  --cu3s-file-path data/XMR_Demo_Blood_Perfusion/Auto_005.cu3s

A few minutes later you have output/blood_perfusion/ndvi_projection.mp4 — the colormapped NDVI video at 15 fps:
